iCESugar FPGA Development Board Open Source RISC-V ICE40UP5k Icebreaker Fomu (FPGA and PMOD-LED)
Product details
| Management number | 221449506 | Release Date | 2026/05/03 | List Price | US$24.00 | Model Number | 221449506 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

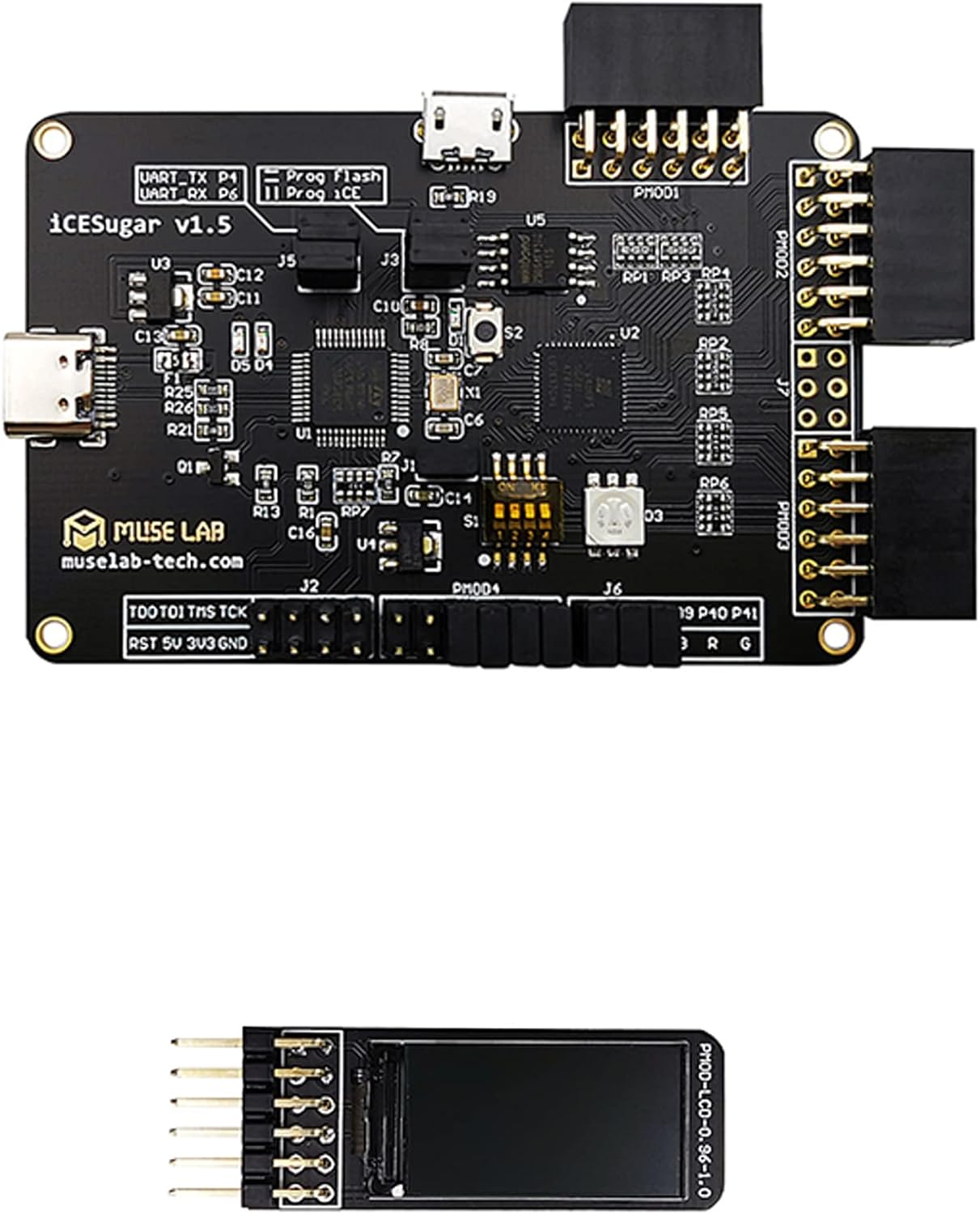

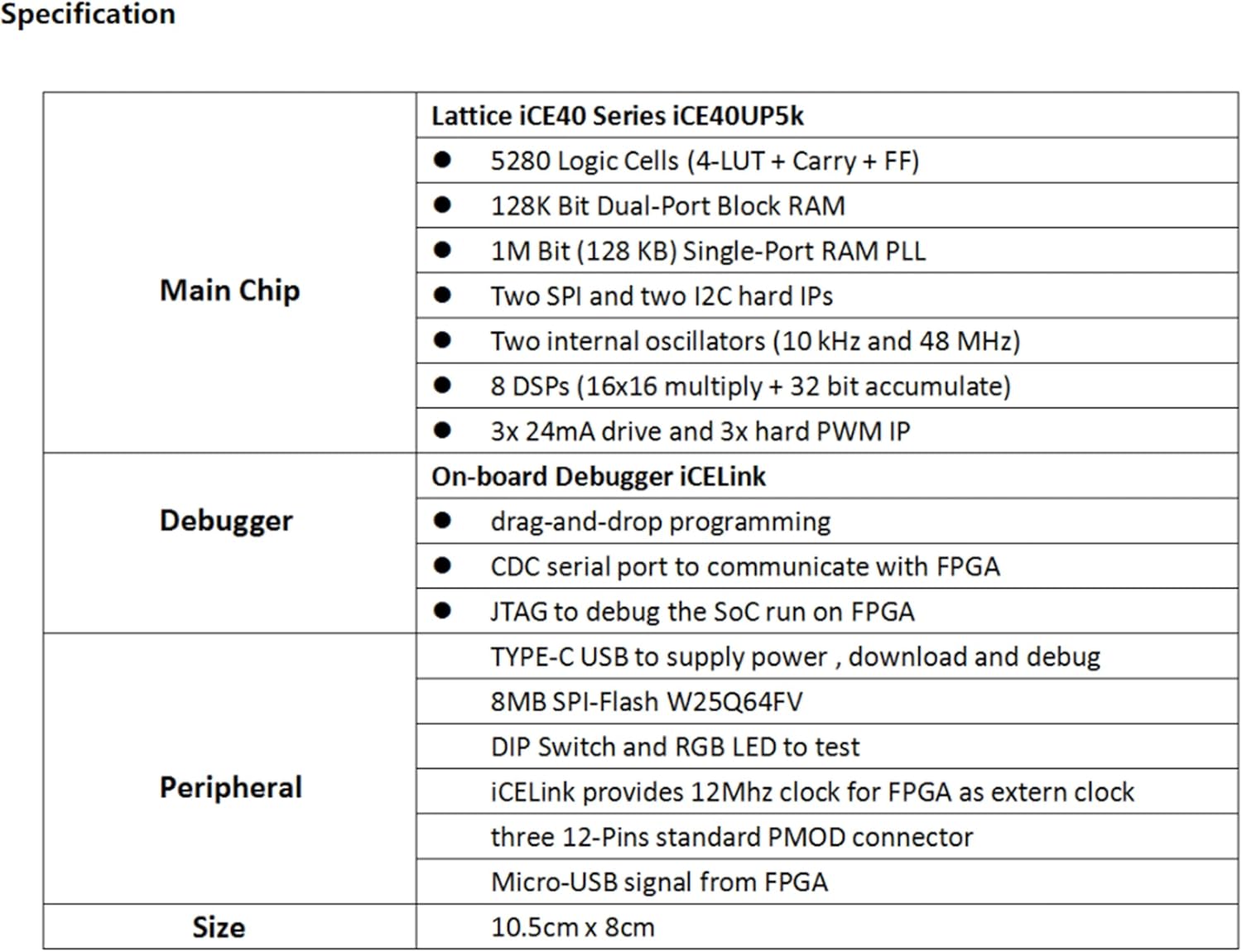

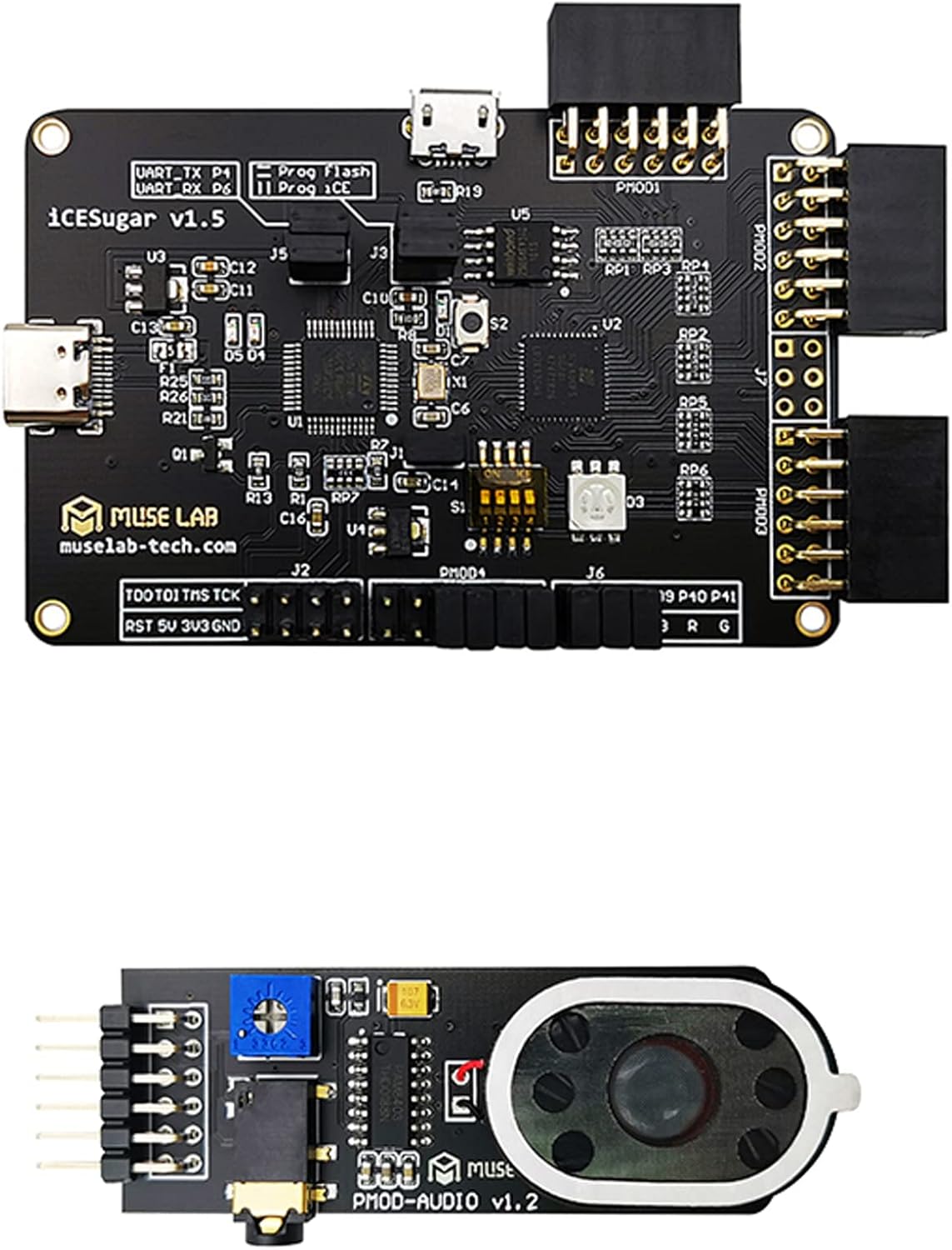

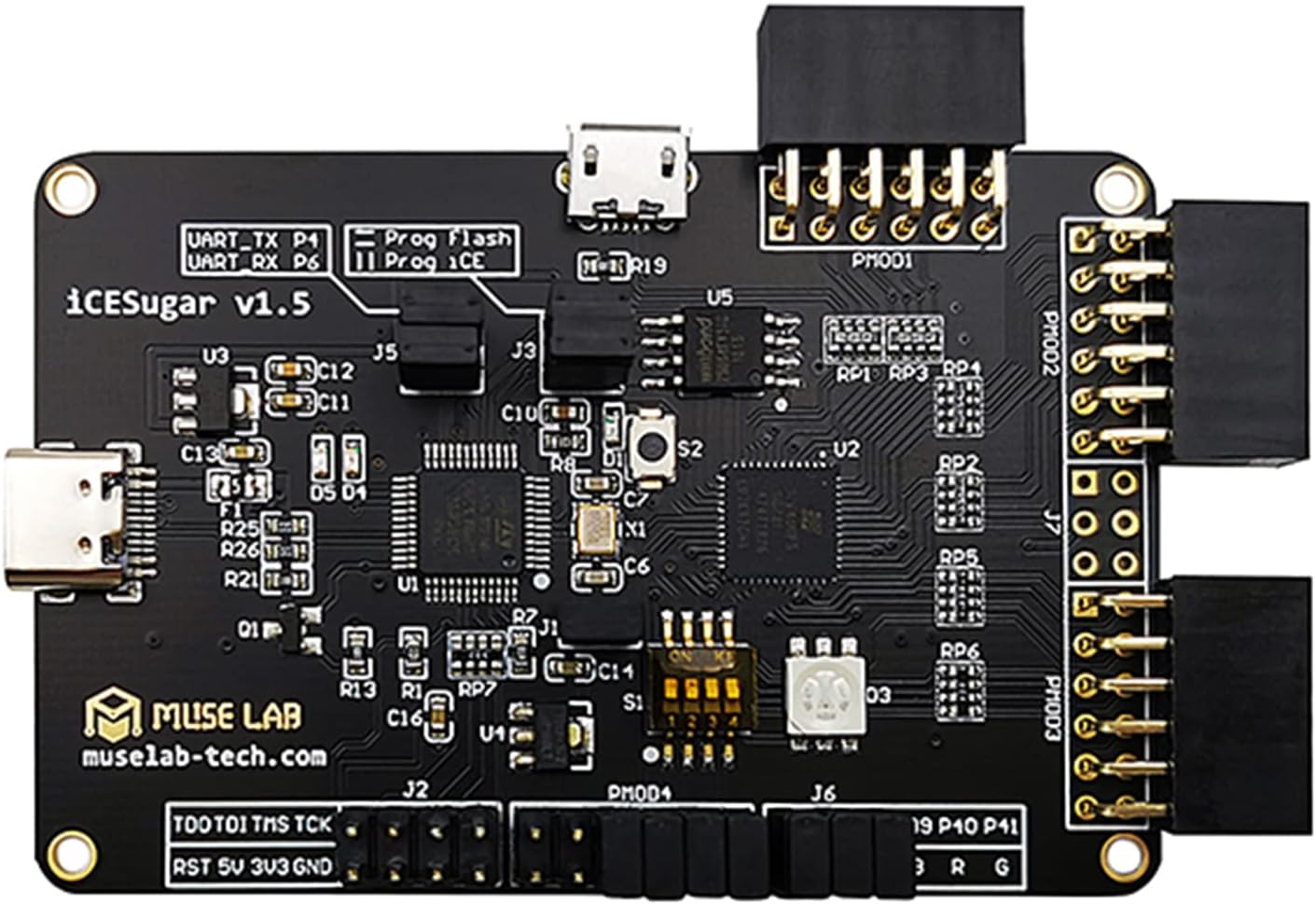

Product introduction iCESugar is a open source FPGA development board based on Lattice iCE40UP5k designed and made by Muse Lab. Though it’s small and exquisite, it contains rich peripheral resources on board including RGB LED，Switch，TYPE-C-USB, Micro-USB. Most of the IO are led out by standard PMOD connector and can connect with other PMOD device. Also, it has a on-board debugger called iCELink which is based on ARM Mbed DAPLink. You can just drag the FPGA bitstream into the virtual disk to program with a big convenience, since the iCELink supports drag-and-drop programming, USB CDC serial port and JTAG. Features -iCE40UP5k main chip, 5280 LUT/128KB SPRAM/PLL/ SPI/I2C/DSP/PWM -On-board iCELink debugger, supporting drag-and-drop programming, USB CDC serial port and JTAG -Lead out all the IO with standard PMOD connector and can connect with other PMOD devices -Totally use open source tool chain to develop -Built-in 8MB SPI-Flash and support DUAL/QUAD SPI & QPI Documentation: http://github.com/wuxx/icesugar
- Package Introduction: 1pc*【FPGA and PMOD-LED】
- ICE40UP5k main chip, 5280 LUT/128KB SPRAM/PLL/ SPI/I2C/DSP/PWM
- On-board iCELink debugger, supporting drag-and-drop programming, USB CDC serial port and JTAG

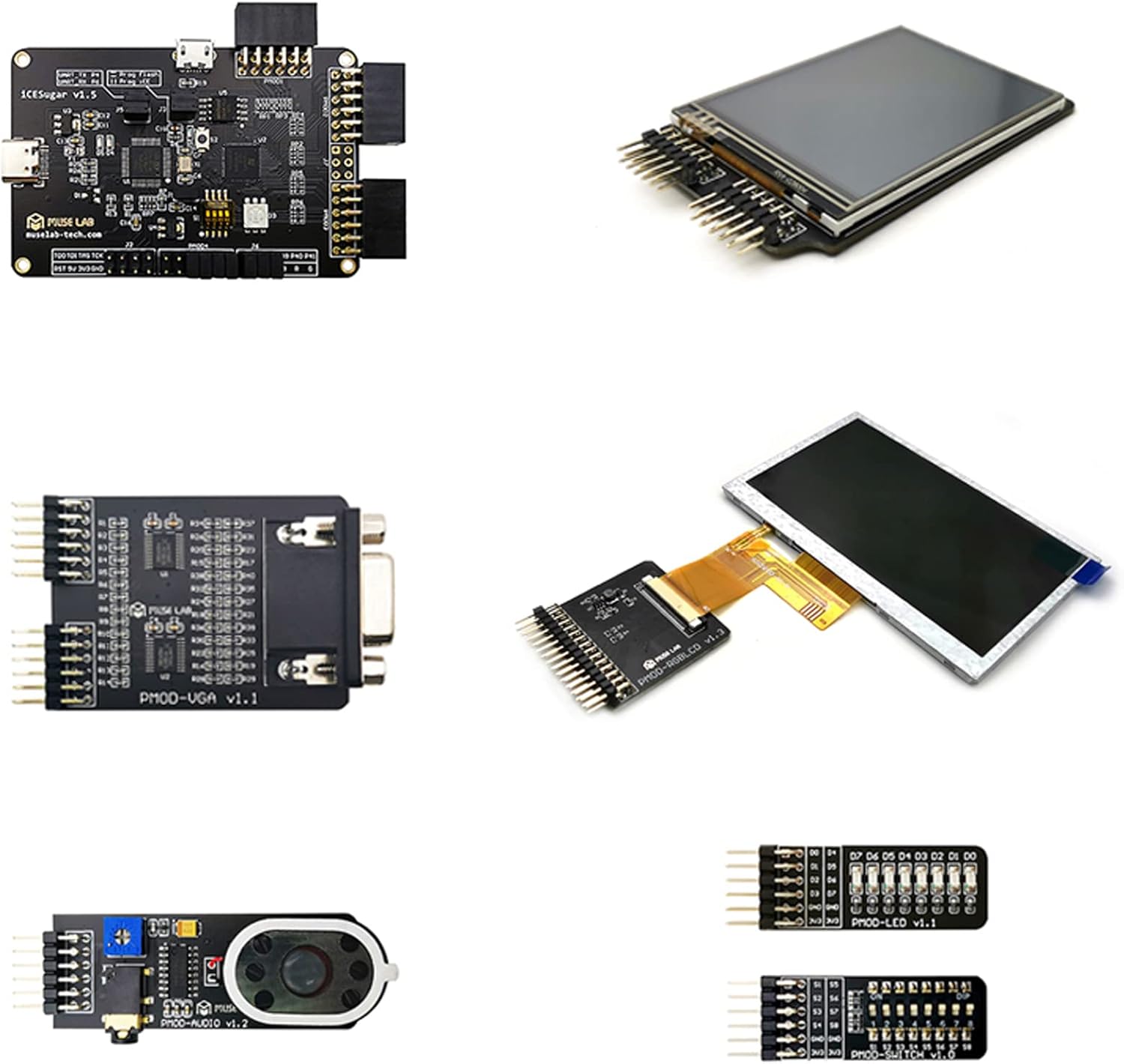

- Lead out all the IO with standard PMOD connector and can connect with other PMOD devices
- Totally use open source tool chain to develop
- Built-in 8MB SPI-Flash and support DUAL/QUAD SPI & QPI
| Brand | MiiElAOD |
|---|---|
| Model Name | iCESugar |
| Manufacturer | Miistore |
| BuiltIn Media | FPGA and PMOD-LED |
| Processor Brand | Lattice Semiconductor |
| Processor Count | 1 |
| Total Usb Ports | 2 |
| Operating System | Linux |
| Compatible Devices | PMOD devices |
| Warranty Description | 180 days |
| RAM Memory Technology | SRAM |
| Connectivity Technology | I2C, USB |
| Memory Storage Capacity | 8 MB |
